OVERVIEW SPECIFICATIONS AND TECHNICAL INFORMATION

See Aluminum Tolerances

Aluminum Architectural Channel 6063-T52 has excellent corrosion resistance, good formability, and light weight. 6063 is more easily formable and much more corrosion resistant than 6061, but it is only about half as strong. 6063-T52 is typically used in applications where corrosion resistance and aesthetic are more important than strength, such as piping, furniture, and decorative applications.

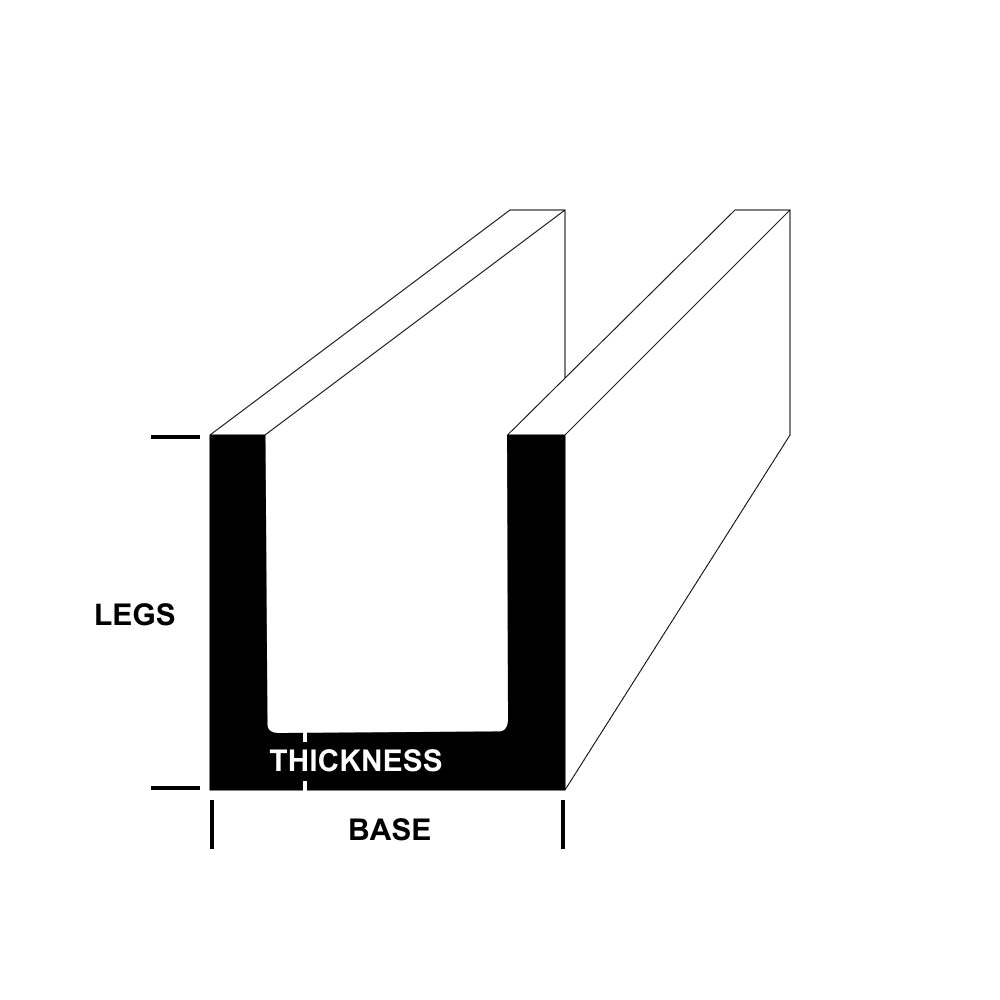

shape Image

Dimension Name

Specification

Alloy 6063
Temper T52
Production Method Extruded
Shape Type Architectural
Base 2
Legs 1
Thickness 0.125
Max Length 192
MTR Availability Yes
Material Aluminum
Shape Channel
Custom Cut Warehouse 1
Material Specifications

This material meets the following specs: ASTM -B221, AMS -QQ-A-200/9

Weight/Lineal Foot

0.57 pounds
Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.

Mechanical Properties

Property Value
Brinell hardness  60 min
Elongation % in 2 inches 12
Endurance limit KSI 10
Modulus of Elasticity KSI x 10^3 10
Ultimate KSI 27
Ultimate shear strength KSI 17
Yield KSI 21

Chemistry Information: 6063 Aluminum

Element Percentage
Mg 0.45 - 0.9
Al 98.9
Cr 0.1 max
Cu 0.1 max
Fe 0.35 max
Mn 0.1 max
Si 0.2 - 0.6
Ti 0.1 max
Zn 0.1 max
