Made to Measure with Accurate Custom Cuts
With the tightest custom cut tolerances of any small quantity US metal supplier, your materials get a 3-point inspection to ensure quality and accuracy before it ships.


OVERVIEW SPECIFICATIONS AND TECHNICAL INFORMATION

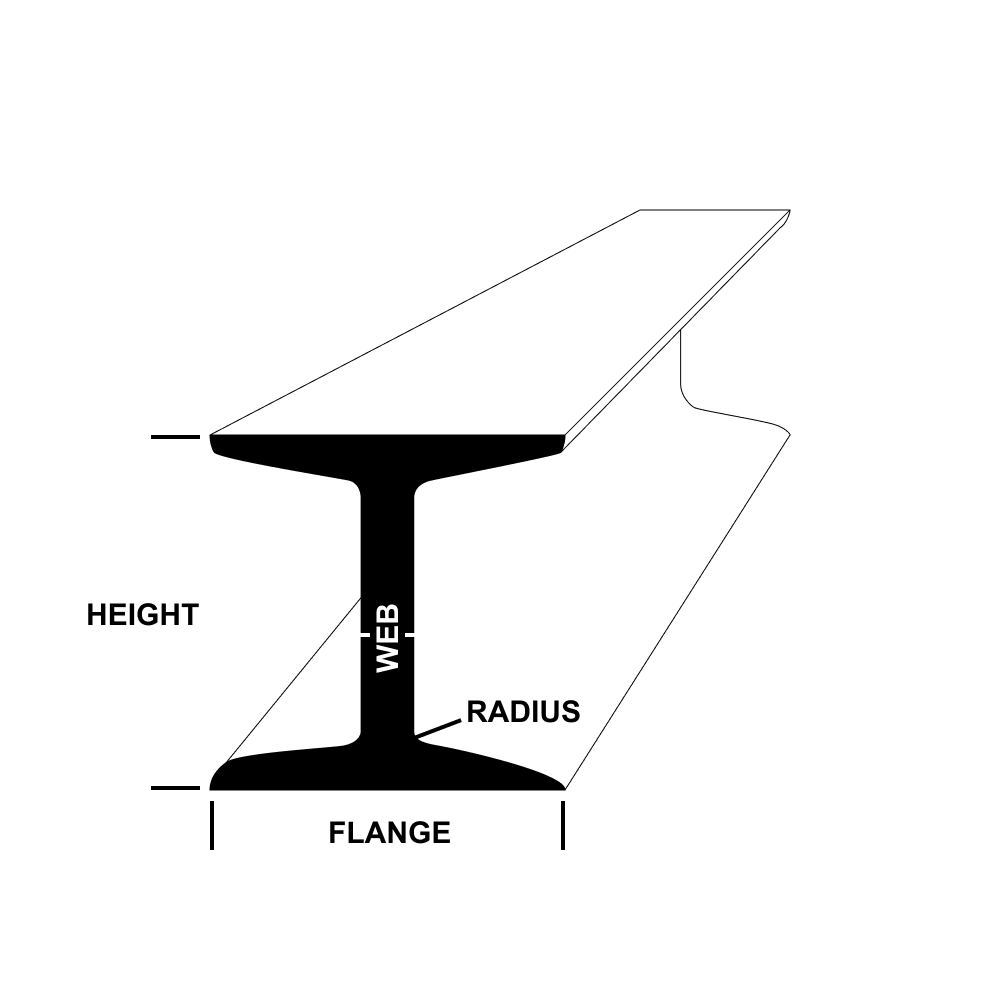

shape Image

Dimension Name

Specification

Max Length 300
Flange 2.796
Height 4
Web 0.326
Thickness 0.19
Alloy 6061
Temper T6
Production Method Extruded
Shape Type American Standard
MTR Availability Yes
Full Length true
Material Aluminum
Shape I-Beam
Custom Cut Warehouse 1
Material Specifications

This material meets the following specs: AMS -QQ-A-200/8, ASTM -B221, ASTM -B308

Weight/Lineal Foot

3.29 pounds
Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.

Mechanical Properties

Property Value
Rockwell Hardness B Scale 60
Brinell Hardness 500 kg load 95
Density g/cm^3 2
Elongation Typical % 12
Melting Point °F 1080 - 1205
Modulus of Elasticity KSI x 10^3 10
Specific Heat BTU/lb-°F 2
Tensile Strength KSI 45
Thermal Conductivity BTU-in/hr-ft^2-°F 1160
Yield Strength KSI 40
Shear Strength KSI 30

Chemistry Information: 6061 Aluminum

Element Percentage
Al 98
Cr 0.04 - 0.35
Cu 0.15 - 0.4
Fe 0.7 max
Mg 0.8 - 1.2
Mn 0.15 max
Si 0.4 - 0.8
Ti 0.15 max
Zn 0.25 max
