6" x 0.25" Aluminum Square Tube 6061-T6-Extruded -Part #: 18024

6" x 0.25" Aluminum Square Tube 6061-T6-Extruded -
Part #: 18024
aluminum-square-tube-6061-t6-extruded-main
Flag MTR AVAILABLE

QTY

Starting at
$59.74 ea.
$59.74 for 1

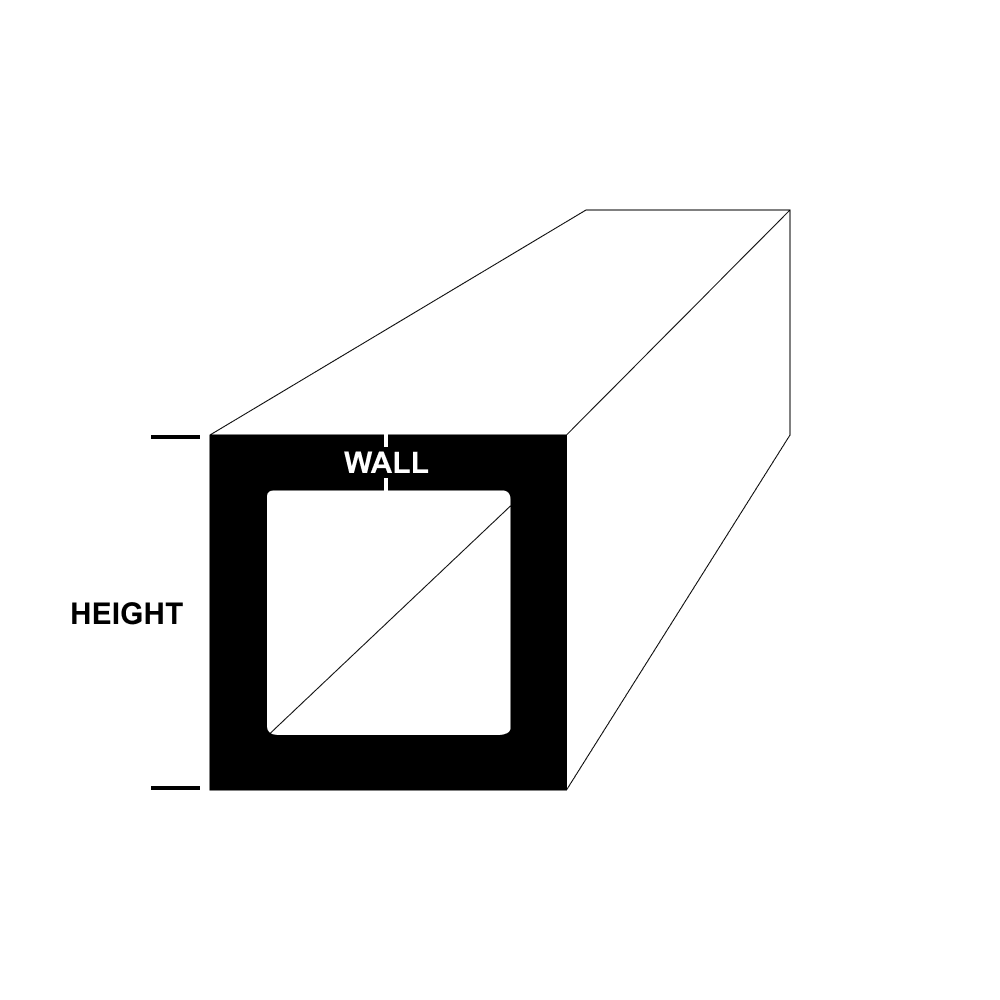

Dimensions
  • Height: 6"
  • Wall: 0.25"
    See all available dimensions for this product
    Create Custom Cut

    Overview :

    See Aluminum Tolerances

    Aluminum Square Tube 6061-T6 exhibits above average corrosion resistance, good machinability, high strength, light weight, good weldability, and the ability to be heat treated for even higher strength, all at an affordable price. 6061 is the most commonly used aluminum alloy in the world due to its positive characteristics. It is typically used in aerospace, automotive, cameras, couplings, marine hardware, electrical components, decorative hardware, structural applications, pins, brakes, pistons, valves, and bicycle frames.
    Tube is designed to act as structural support, whereas Pipe is designed to carry liquid/gas/material from one place to another.

    Read More Specifications
    Specifications
    shape Image

    Material Meets These Standard(s):

    AMS-QQ-A200/8,

    ASTMB-221,

    Weight/Lineal Foot: 6.75

    Dimension Name Value
    Alloy 6061
    Temper T6
    Production Method Extruded
    Height 6
    Wall 0.25
    MTR Availability Yes
    Material Aluminum
    Shape Tube-Square
    Custom Cut Warehouse 1
    Overview

    See Aluminum Tolerances

    Aluminum Square Tube 6061-T6 exhibits above average corrosion resistance, good machinability, high strength, light weight, good weldability, and the ability to be heat treated for even higher strength, all at an affordable price. 6061 is the most commonly used aluminum alloy in the world due to its positive characteristics. It is typically used in aerospace, automotive, cameras, couplings, marine hardware, electrical components, decorative hardware, structural applications, pins, brakes, pistons, valves, and bicycle frames.
    Tube is designed to act as structural support, whereas Pipe is designed to carry liquid/gas/material from one place to another.

    Weight/Lineal Foot
    6.75 pounds
    Material Specifications

    This material meets the following specs : AMS-QQ-A 200/8

    This material meets the following specs : ASTM B-221

    Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.
    Chemistry Information: 6061 Aluminum

    Element

    Percentage

    Cr 0.04 - 0.35
    Al 98
    Cu 0.15 - 0.4
    Fe 0.7 max
    Mg 0.8 - 1.2
    Mn 0.15 max
    Si 0.4 - 0.8
    Ti 0.15 max
    Zn 0.25 max
    Mechanical Properties

    Property

    Value

    Elongation % in 2 inches 12
    Modulus of Elasticity KSI x 10^3 10
    Ultimate shear strength KSI 27
    Ultimate KSI 42
    Yield KSI 37
    Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.
