0.06" Thick x 1/8" Hole x 3/16" Stagger Mild Steel Perforated Sheet A36 Round Hole

Product Details, Specifications, and Technical Information

Hot Roll Mild Steel Perforated Sheet A36 (0.06" thick x 0.125" Holes x 0.1875" Stagger) is often used for architectural details, ventilating, and furniture. Hot Roll Mild Steel Perforated Sheet A36 offers good weldability, machinability, and can be heat treated to harden its surface. Unlike cold rolled steel, Hot Rolled Steel has a rougher surface and with galvanization, it can resist corrosion well.

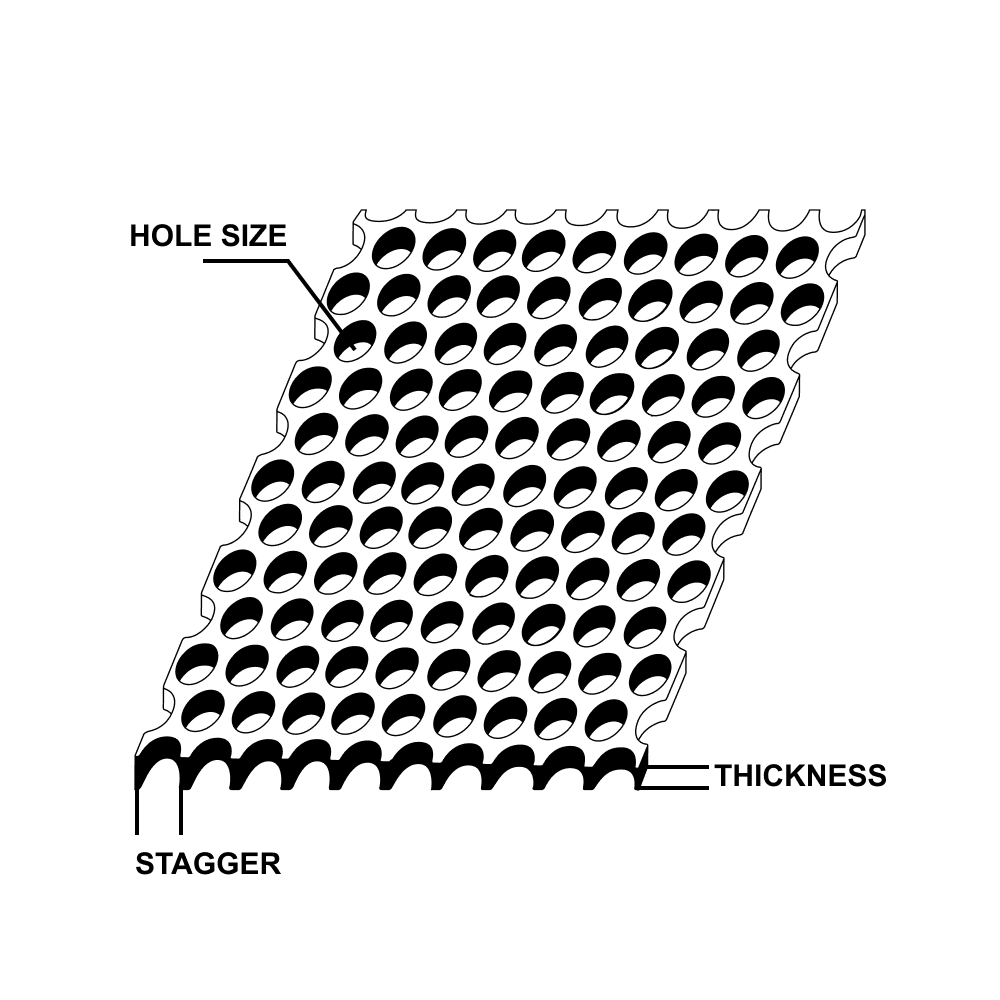

Dimension Name	Specification
Thickness	0.06
Opening Size	0.125
Staggered Centers	0.1875
Open Area	40%
Hole Shape	Round
Max Width	48
Max Length	120
Alloy	A36
MTR Availability	No
Full Length	true
Material	Carbon Steel
Shape	Sheet-Perforated
Custom Cut Warehouse	1

Weight/Lineal Foot
1.5 pounds

Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.

Mechanical Properties
Property	Value
Brinell Hardness 500 kg ball	140
Rockwell Hardness B scale	84
Density g/cm^3	7
Elongation Typical %	23
Modulus of Elasticity KSI x 10^3	27
Melting Point °F	2590 - 2670
Specific Heat BTU/lb-°F (32-212F)	1
Thermal Conductivity BTU-in/hr-ft^2-°F	348
Tensile Strength KSI	58 - 79
Yield Strength KSI	36
Shear Strength KSI	44

Chemistry Information: A36 Carbon Steel
Element	Percentage
C	0.29 max
Cu	0.2
Fe	99
Mn	0.75
P	0.04 max
S	0.05 max
