OVERVIEW SPECIFICATIONS AND TECHNICAL INFORMATION

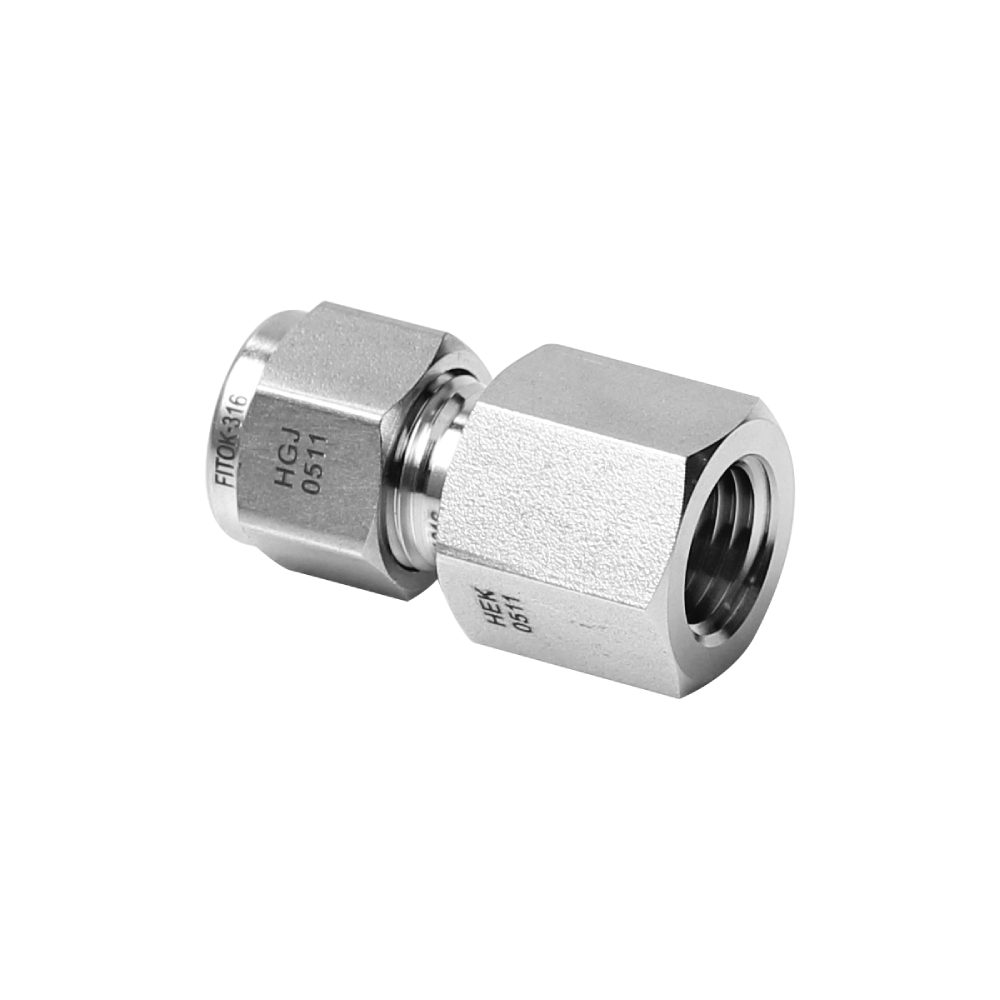

FITOK Stainless Steel Dual Ferrule 316 Female Connector Compression Tube Fittings have tapered female threads which can be joined with male fittings that have the same NPT measurement. The 3/4 inch FITOK Female Connector fitting is compatible with stainless steel 3/4 inch OD tube with a 0.049 inch, 0.065 inch, 0.083 inch, 0.095 inch, or 0.109 inch wall thickness.

Installation Guide

Pressure and Tubing Guide

shape Image

Dimension Name

Specification

Alloy 316
Shape Type Female Connector
Eniteo Vendor ID 1558
MTR Availability No
Material Stainless Steel
Shape Fitok-Fittings
Custom Cut Warehouse 0

Weight/Lineal Foot

0.04 pounds
Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.

Chemistry Information: 316 Stainless Steel

Element Percentage
C 0.08
Cr 18 max
Mn 2
Fe 82
Mo 3 max
Ni 14 max
P 0.045
S 0.03
Si 1
