0.75" Fitok Stainless Steel 316 Female NPT Elbow -Part #: 25738

See what other people are making with this product in our gallery section >

1 Dimension(s) for this product

Fitting Type: elbow

Available Sizes for this Product

Read More Specifications See Product Guide

3 Update Your Quantity and Add to Your Cart

QTY

$143.77 ea.

$143.77 for 1

Product Details, Specifications, and Technical Information

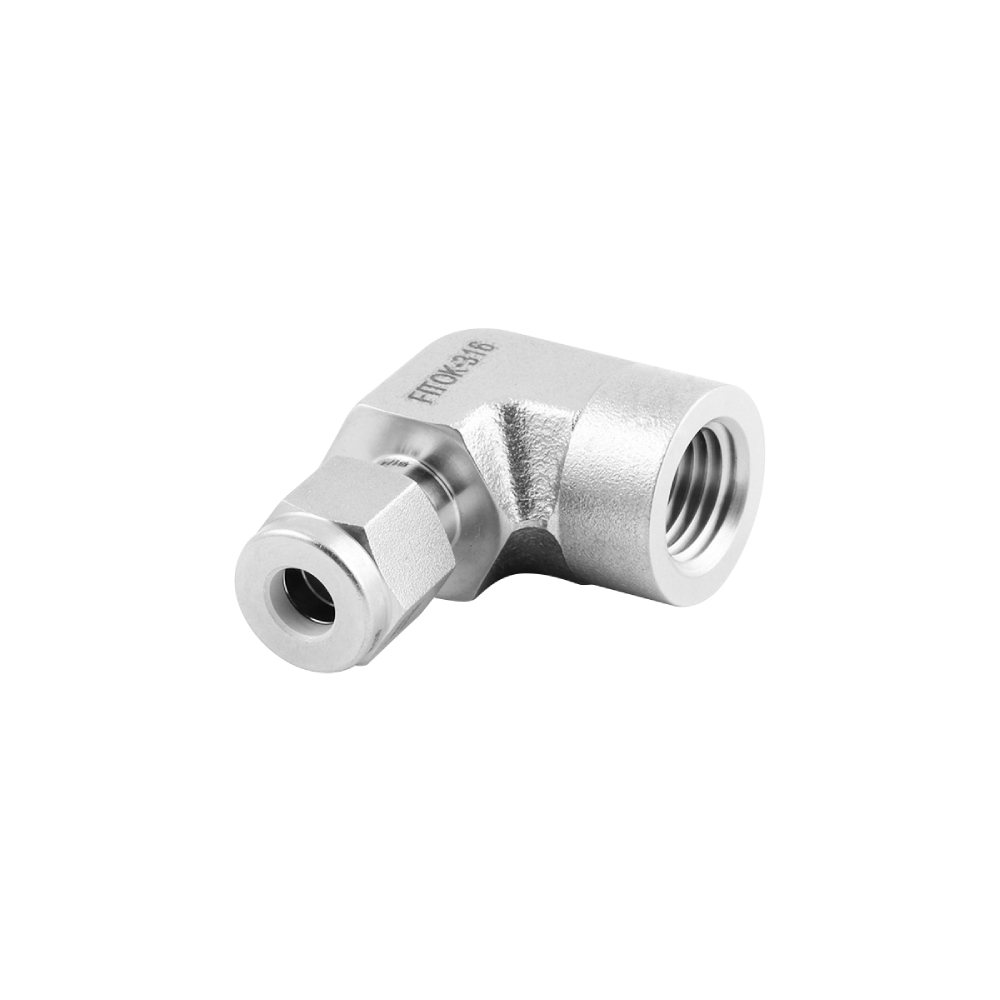

FITOK Stainless Steel Dual Ferrule 316 Female NPT Elbow Compression Tube Fittings allow for the connection of tube with proper male NPT tapered pipes or fittings at a 90-degree angle. The 3/4 inch FITOK Female NPT Elbow fitting is compatible with stainless steel 3/4 inch OD tube with a 0.049 inch, 0.065 inch, 0.083 inch, 0.095 inch, or 0.109 inch wall thickness.

Installation Guide

Pressure and Tubing Guide

Dimension Name	Specification
Fitting Type	Elbow
Alloy	316
Material	Stainless Steel
Shape	Tube Fittings
Shape Type	Female NPT
MTR Availability	No
RoHS	Yes
REACH	Yes
Eniteo Vendor ID	1558
Custom Cut Warehouse	0

Weight/Lineal Foot
0.09 pounds

Please note that this data is to be used ONLY FOR REFERENCE, NOT FOR DESIGN, and by using it,you agree that any decisions you make regarding materials for your project are at your own discretion.

Mechanical Properties
Property	Value
Yield Tensile Strength KSI	37
Ultimate Tensile Strength KSI	82
Rockwell Hardness B Scale	95
Elongation % in 2 in.	52
Density g/cm^3	8
Brinell Hardness 3000 kg load	210
Melting Point °F	2500 - 2550
Shear Strength KSI	58
Machinability %	36
Electrical Conductivity % IACS	2

Chemistry Information: 316 Stainless Steel
Element	Percentage
C	0.08
Cr	18 max
Mn	2
Fe	82
Mo	3 max
Ni	14 max
P	0.045
S	0.03
Si	1
